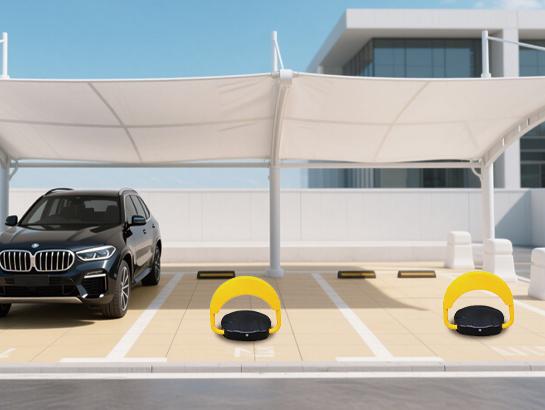

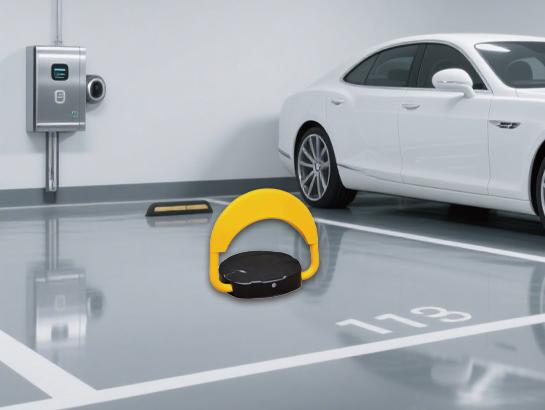

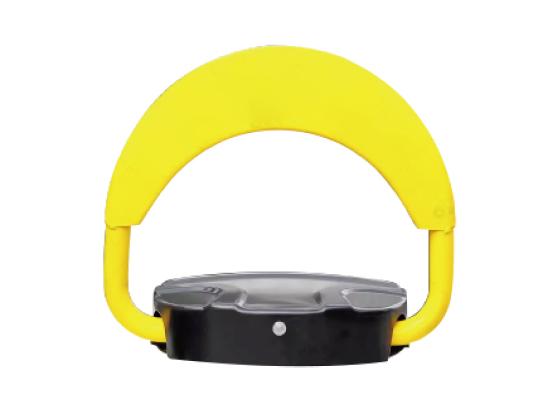

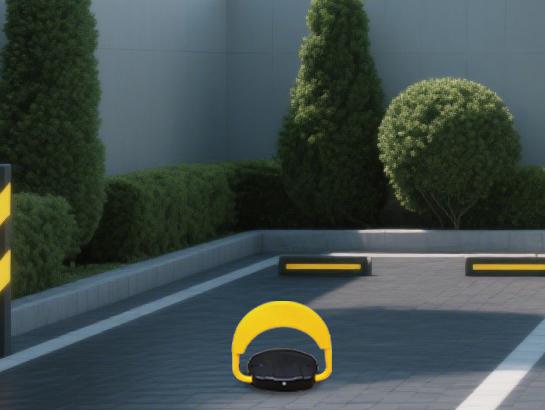

Parking Lock
Product Code: YO381DC (R2)
Features:
- Remote Raising and Lowering via Yoswit App
- Battery Level Monitoring with Timely Replacement Alerts
- Customizable Lifting and Lowering Schedules
- Durable Materials and Anti-Collision Design
- Built-in Alarm Triggers Upon Impact and Notifies the Vehicle Owner

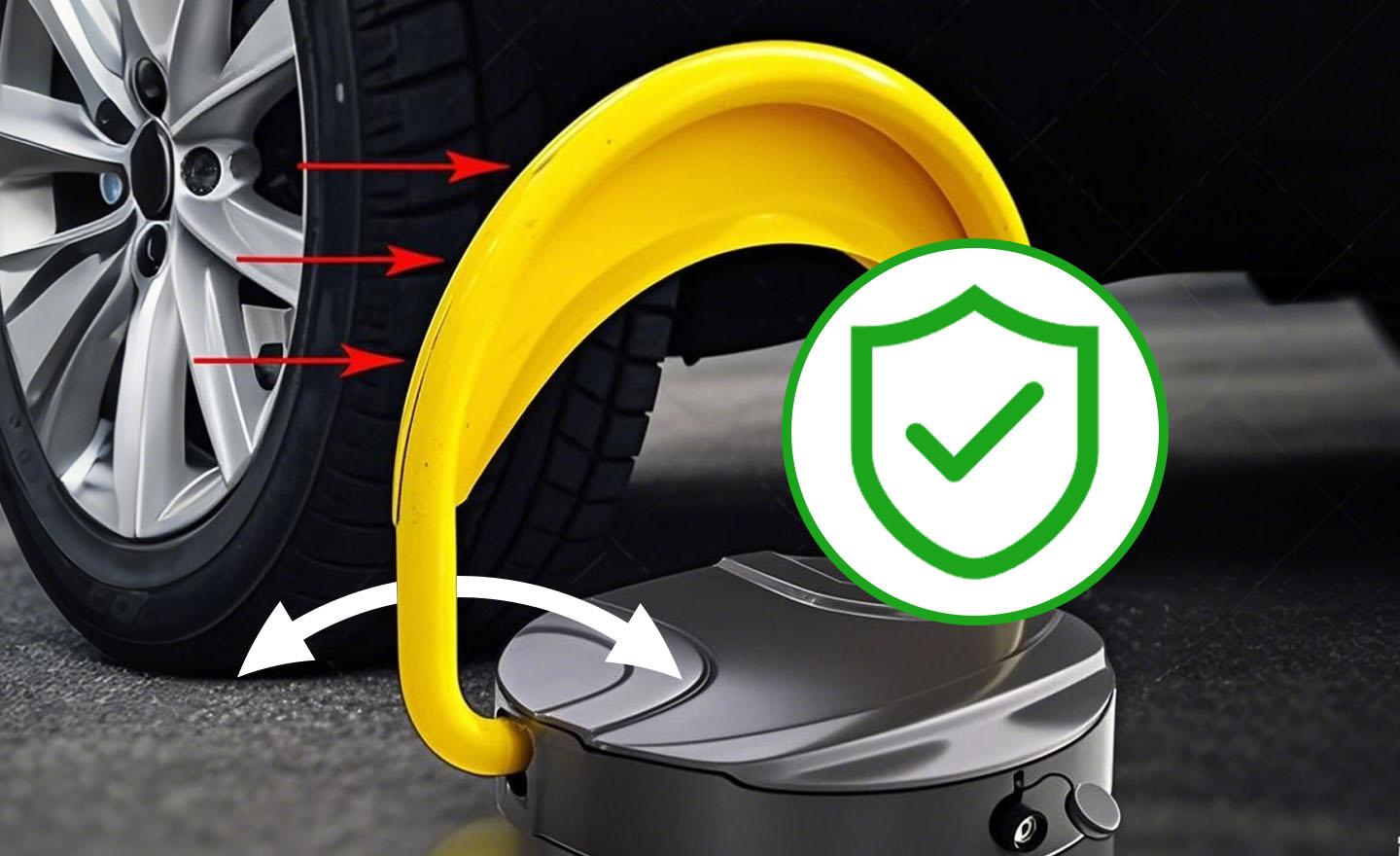

- Swing Arm Protection & Automatic Reset
Product Variant:
Template
Features
Run Your Home from Your Phone
Mobile as Hub
Voice Control
Mesh-like Network
Remote Control
Rooms and Scenes
Away Detection
Schedule Timers
Password Protection
IFTTT
Bluetooth Version
We use Bluetooth 4.2 (also sometimes referred to as Bluetooth Low Energy or BLE) as the core processor of our products.
Compatible Devices
We support all Smart Ready products with our application installed. Please click here to get the growing list.
iOS Support
We support iOS 13.0 or later.
Android Support
We support Android 7 or later.
| General | ||
| Product Name |
Yoswit Parking Lock
|
|
| Model |
YO381DC (R2)
|
|
| Revision |
V1.0
|
|
| Compliance |
CE, FCC, RoHS
|
|
| Manufacturer |
Designed by Yoswit in Hong Kong, China / Assembled in Guangdong, China
|
|
| Dimensions | ||
| Product Size |
|
|
| mechanical | ||
| Operating Temperature |
-20°C to 65°C
|
|
| Operating Humidity |
0-95% RH, Non-Condensing
|
|
| Operation |
APP / Manual
|
|
| Electrical | ||
| Operation Power |
1.5V*4 (D Size Alkaline Battery 4pcs)
|
|
| Power Consumption |
≤0.1W
|
|
| Wireless | ||
| Frequency |
2.4GHz
|
|
| Connection |
Wifi 2.4G / BLE 4.2
|
|
| Range |
Open area: >50m / Interior: 3-20m
|
|
| Package | ||
| What's in the Box |
|
|
WARNING!
To prevent any personal injury or damage, do not mix used batteries with new batteries, or mix different chemistries or sizes of batteries. Battery polarity should be properly oriented.
Basic Installation
1

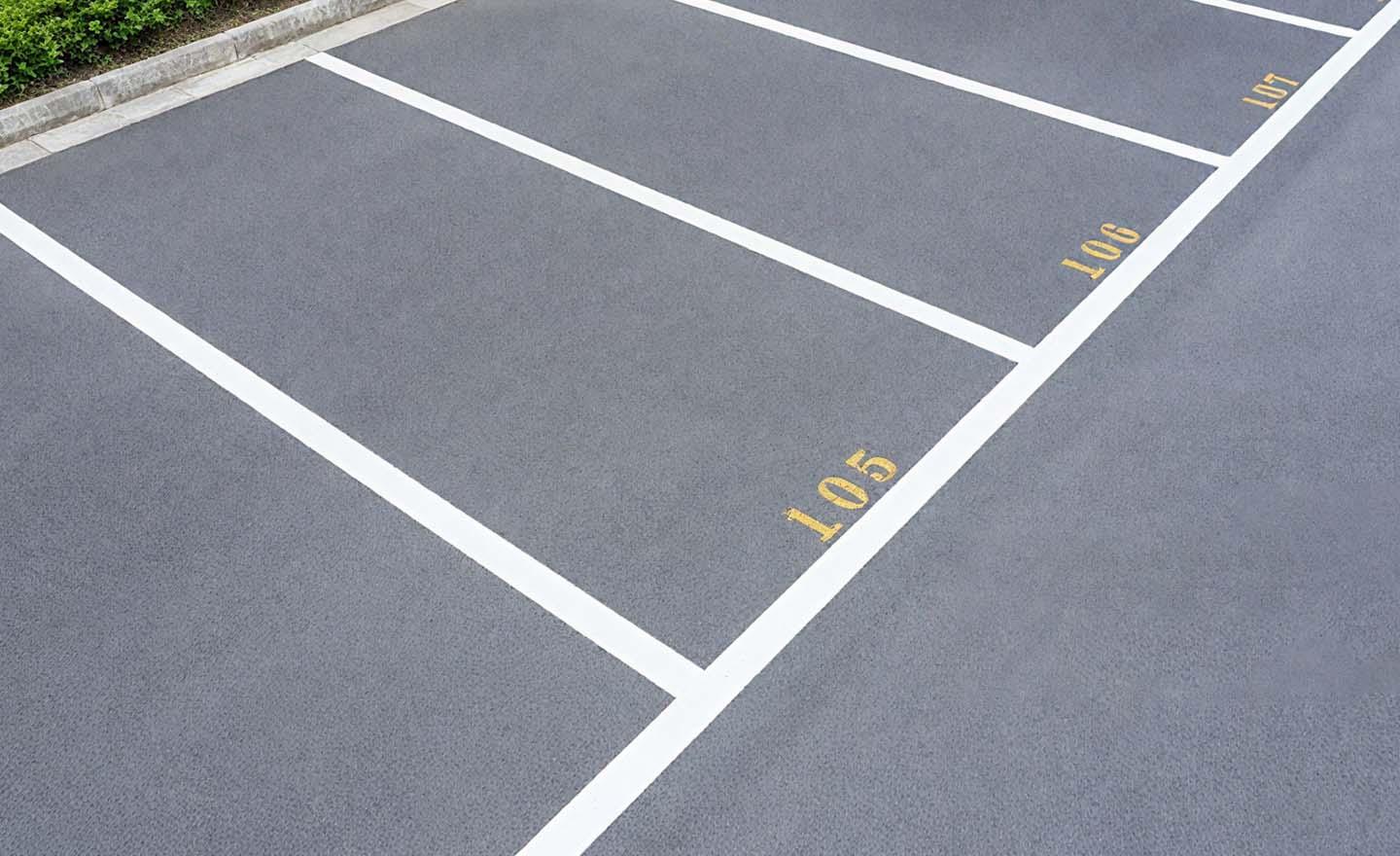

Install the parking lock at the center of the parking space, ensuring no obstruction to vehicle entry/exit.
Warning
The ground must be level and solid.
2

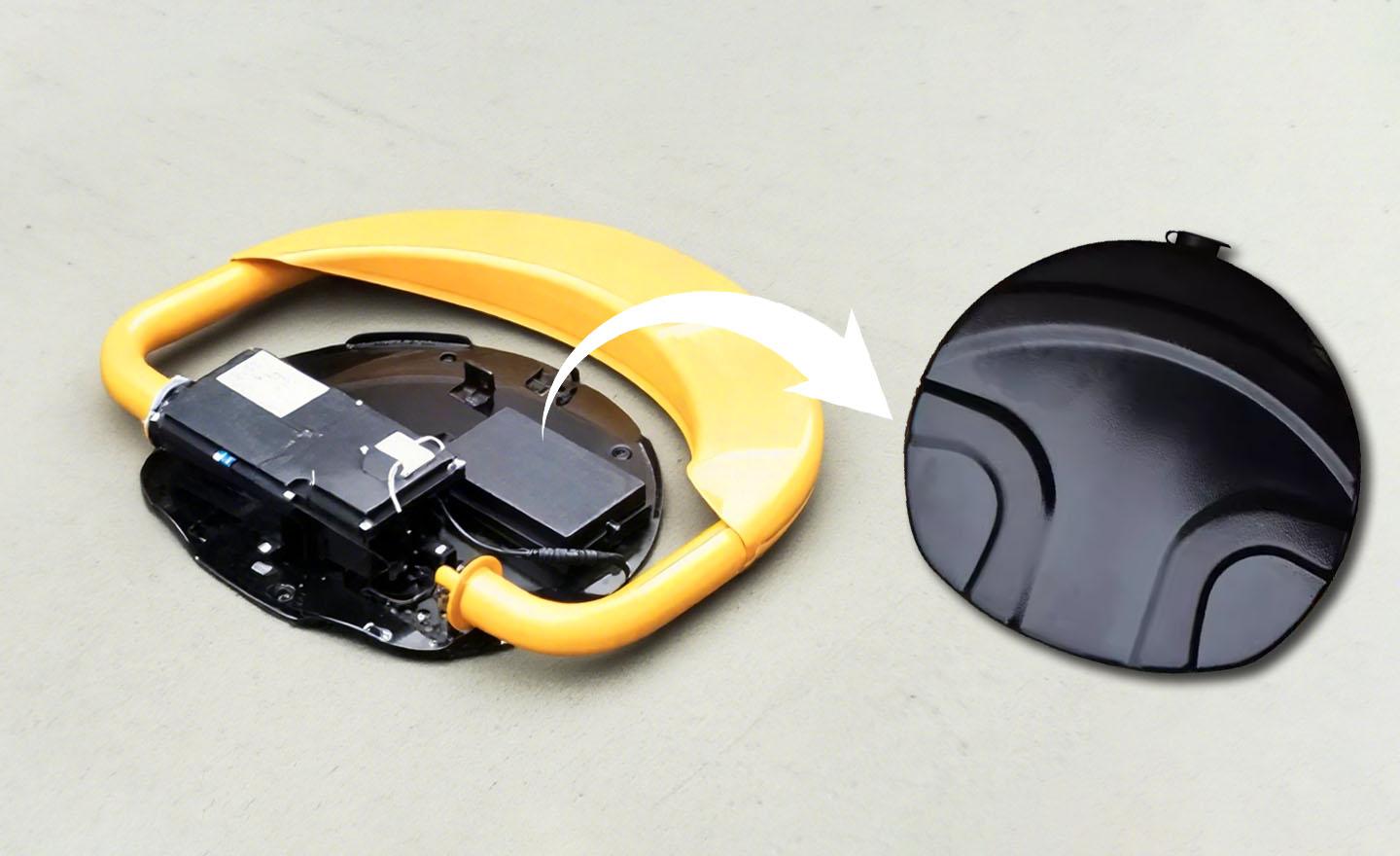

Disassemble the base and cover.
3

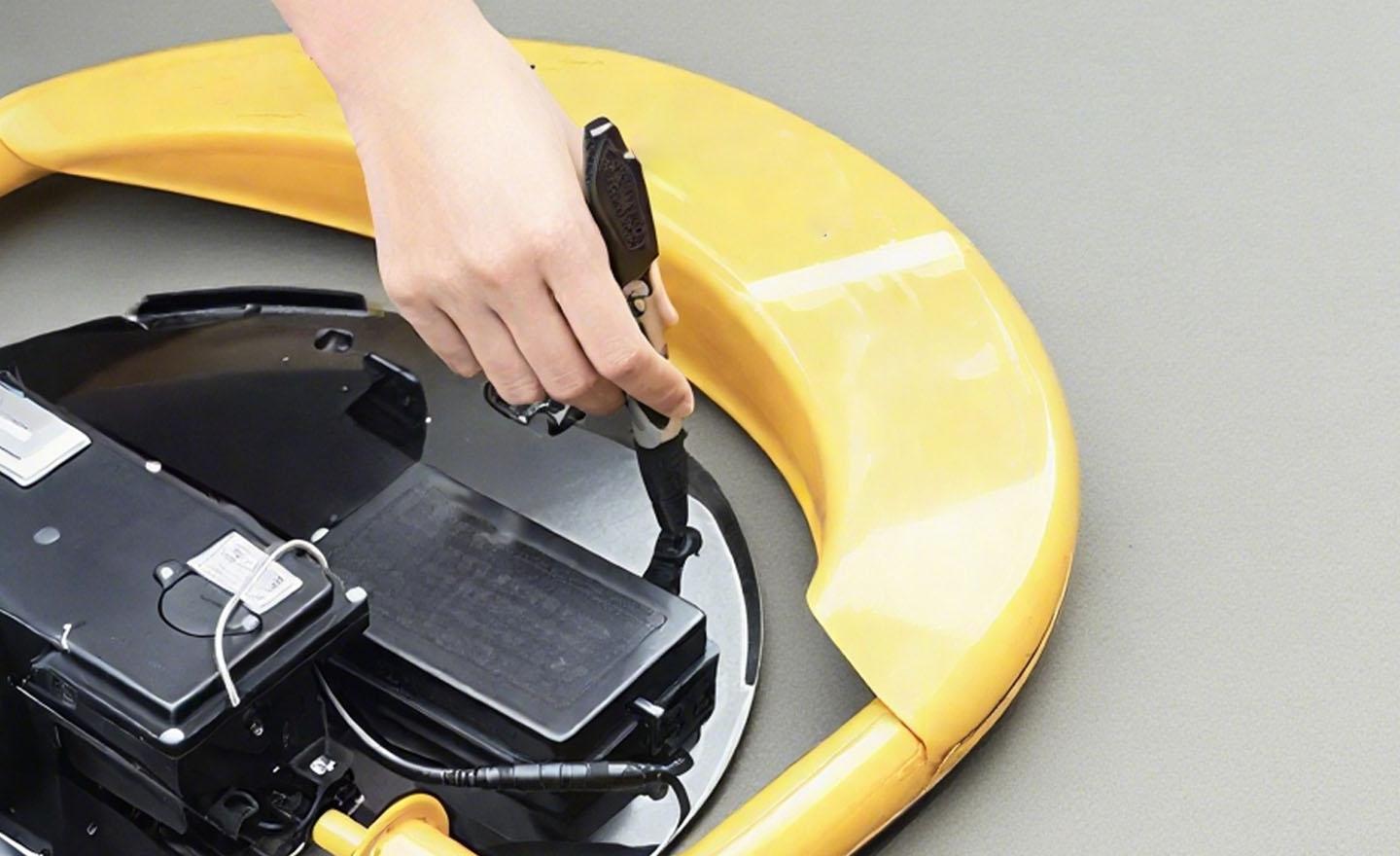

Place the base at the installation position, mark the mounting holes with a marker, then drill holes with an electric drill.
4
Insert expansion bolts into the drilled holes. Align the base holes with the bolts.
5

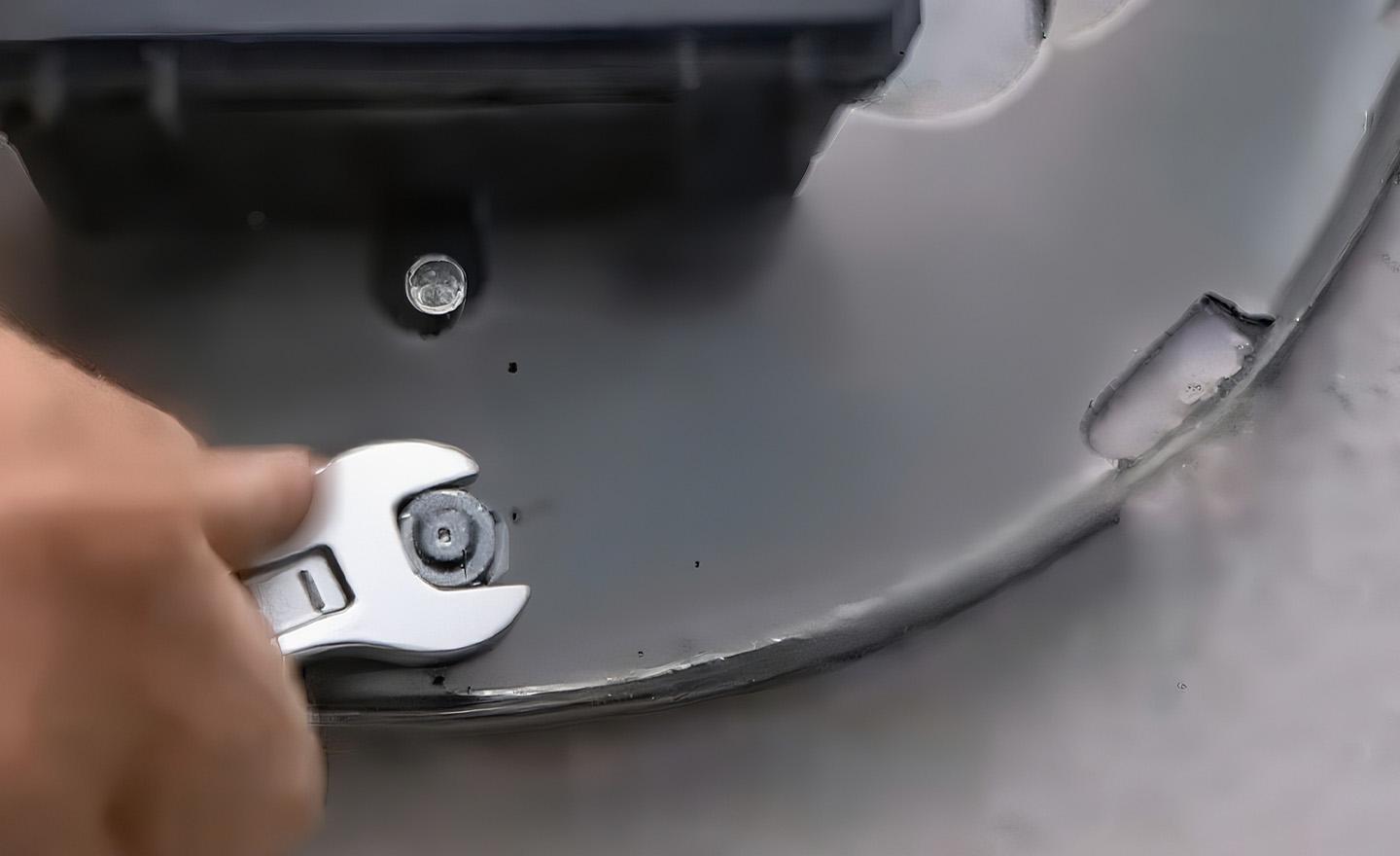

Tighten them diagonally with a wrench (use nut to secure).
6

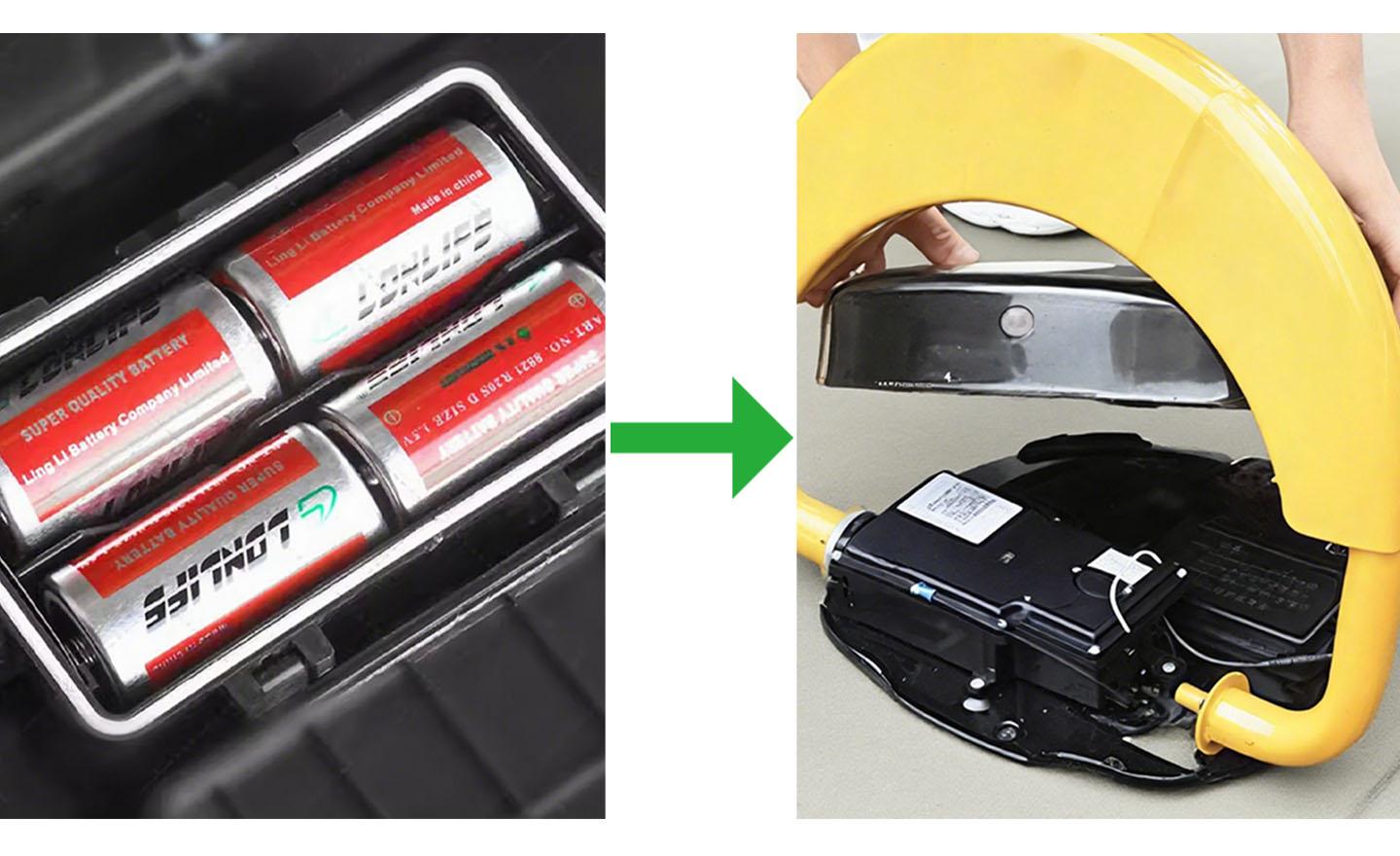

Place 4 D-size alkaline batteries into the Battery Compartment, correctly observe the polarity indications (+/-) inside the compartment. Replace the cover.
7
After installation, test whether the lock raises/lowers smoothly, and ensure it is securely locked without jamming or looseness.
Installation complete.

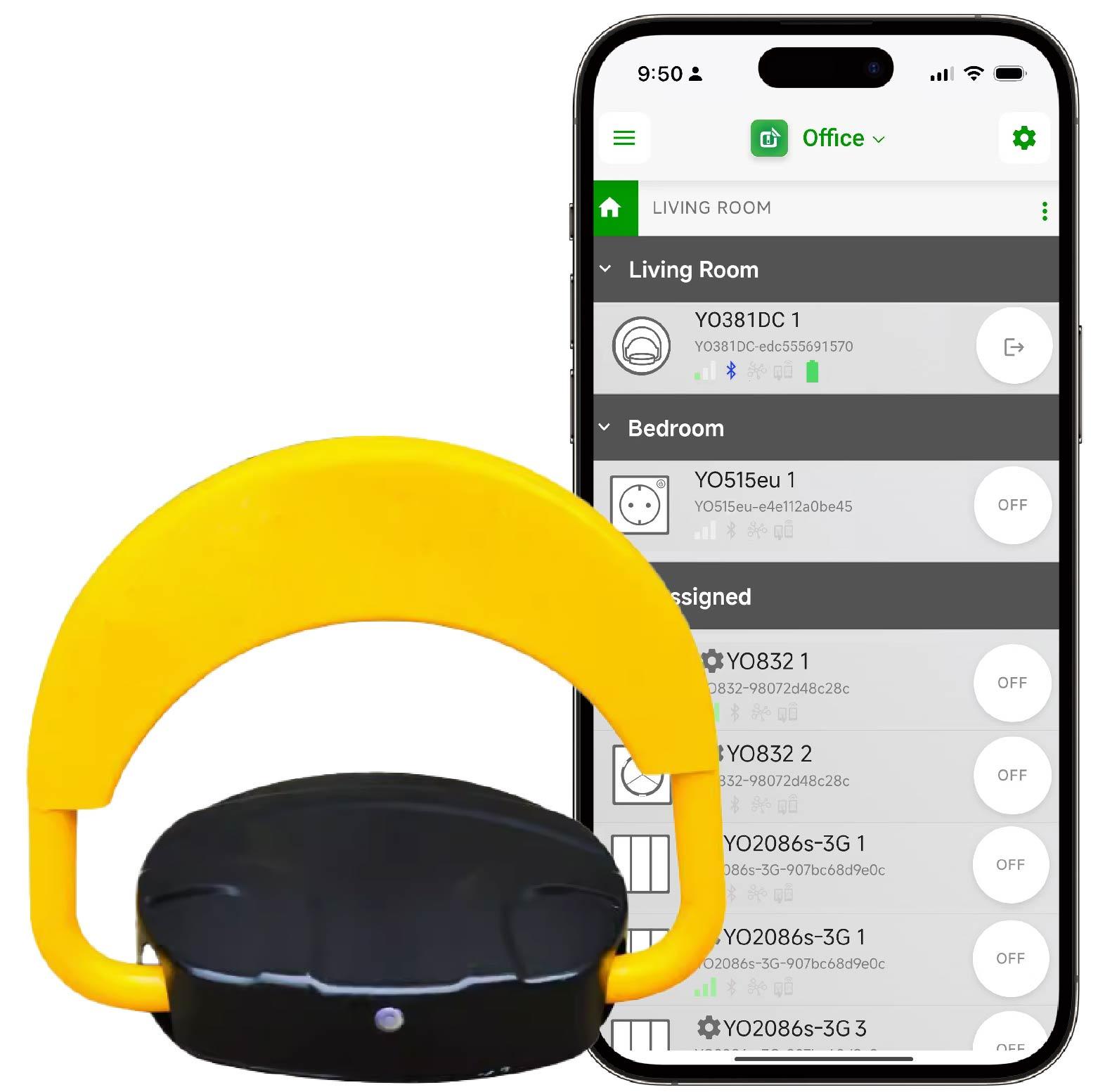

Download the Yoswit App to your smart device and enjoy it now!
Yoswit will automatically detect the switch and add it to your device list.
